Professional Hedge Trimmers

522HS75S

$1,329.00Rec. retail price incl. GST SKU: 967659303
  • Knife length75 cm

Product description

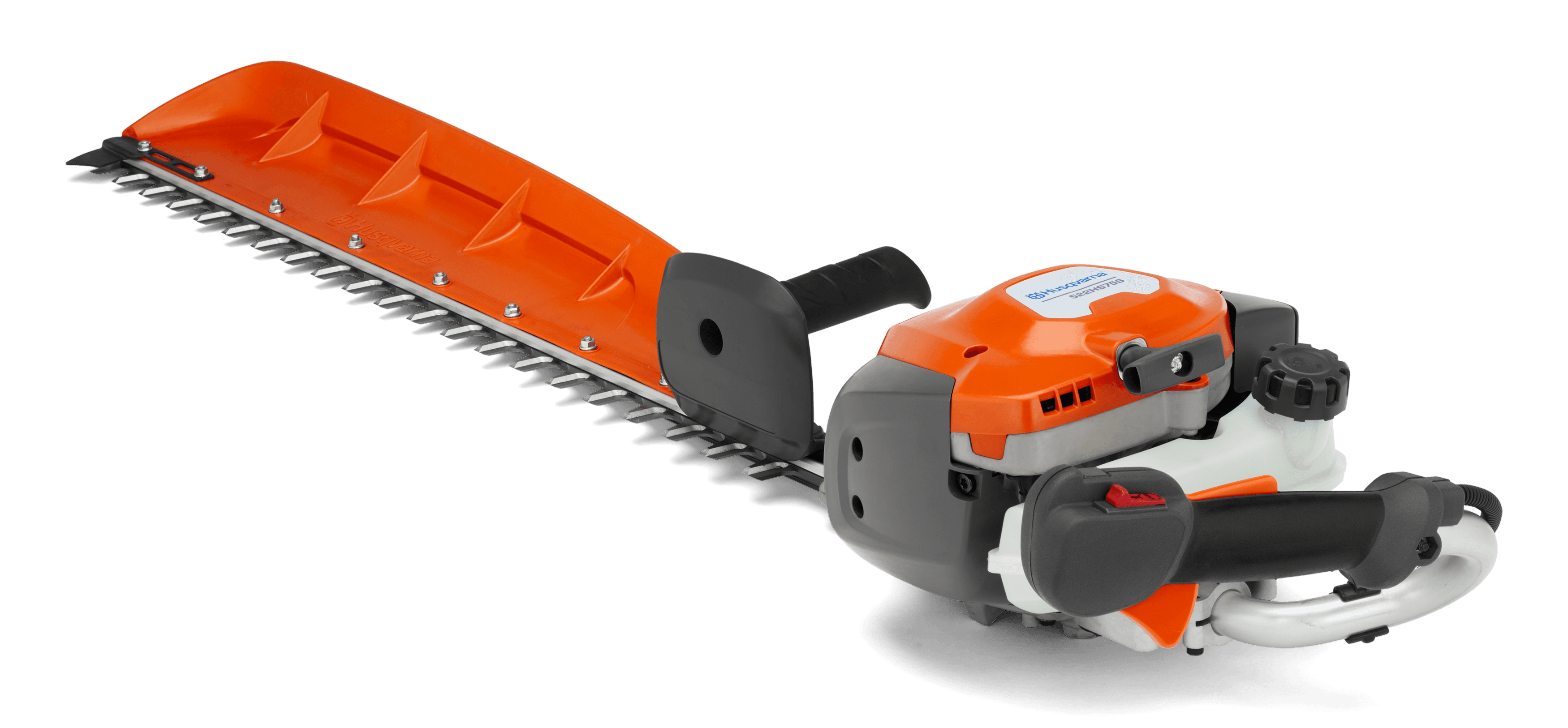

A 21.7cc, single-sided hedge trimmer with a 30" cutter bar for trimming jobs. Equipped with a leaf catcher for less clean-up. The comfortable handle with optimized weight distribution and impressively low weight combined with the slim, balanced design and low vibration levels provide excellent handling, while the high capacity, high-speed professional knife blade and impressive power output allows for excellent cutting performance.

5-year warrantyFinance options

Product Information

Features (8)

The hardened steel blades, optimized edge angles and the high knife speed increase productivity when trimming. image

An efficient job starts with a sharp blade

The design of the cutting blades provides efficiency.

The integrated leaf catcher on our single-side hedge trimmers helps to remove clippings while cutting which means less time spent after-cleaning image

Better result in less time

The leaf catcher simplifies cleaning out fine hedge clippings

Internal gears have been specially designed for long life and tested under tough conditions image

Durable, Tested Materials

Internal gears have been specially designed for long life and tested under tough conditions

The unloosable two-stage air filter in dual materials provide less cost for service and less engine wear. image

Two-stage air filter

Less cost for service and less engine wear

Sharp and robust cutting teeth for high productivity and long product life. image

Sharp teeth

Sharp and robust cutting teeth for high productivity and long product life.

When the stop switch has been used, it is automatically reset to ON to facilitate the next start. image

Simple Starting

When the stop switch has been used, it is automatically reset to ON to facilitate the next start.

Starting a cold engine is easier with the intuitive choke which is easy to reach and set image

Intuitive choke

The choke is easy to reach and understand

The engine design provides a low noise level and a more pleasant working environment. image

Low Noise Engine

The engine design provides a low noise level and a more pleasant working environment.

Specifications

Art No: 967659303
Output shaft power0.6 kW
Weight (excl. cutting equipment)5.1 kg
Cylinder displacement21.7 cm³
Fuel consumption0.36 kg/h
Cutting speed4400 cut/min
Knife length75 cm
Weight (complete product w/o side packed articles)5.1 kg
Fuel tank volume0.45 l
Sound pressure level at operators ear93 dB(A)
Clutch engagement speed (±120)4400 rpm
Electrode gap0.5 mm
Equivalent vibration level (ahv, eq) front handle5.8 m/s²
Equivalent vibration level (ahv, eq) rear handle5.7 m/s²
Exhaust emissions (CO average) EU246.36 g/kWh
Exhaust emissions (CO average) EPA198.84 g/kWh
Exhaust emissions (HC average) EU36.28 g/kWh
Exhaust emissions (HC average) CARB33.66 g/kWh
Exhaust emissions (NOx average) EU0.23 g/kWh
Exhaust emissions (NOx average) EPA0.16 g/kWh
Fuel consumption620 g/kWh
Gear ratio1
Idling speed3000 rpm
Maximum power speed7800 rpm
Sound power level, guaranteed (LWA)102 dB(A)
Sound power level, measured101 dB(A)
Teeth opening30 mm
