Homeowner/Landowner Riders

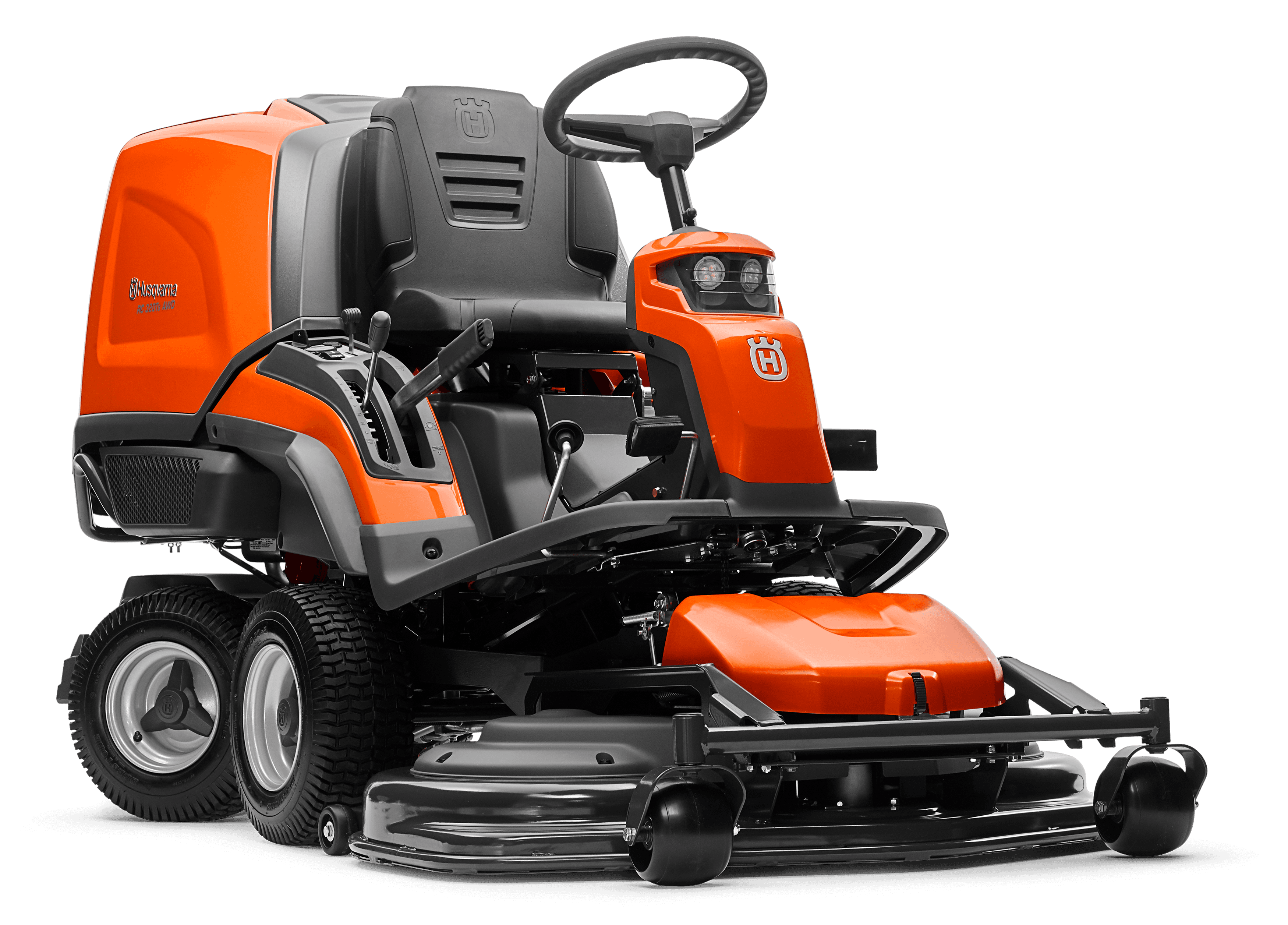

RC 320Ts AWD

$22,990.00Rec. retail price incl. GST SKU: 967628811
  • Power/fuel typePetrol
  • Cutting width, min103 cm

Product description

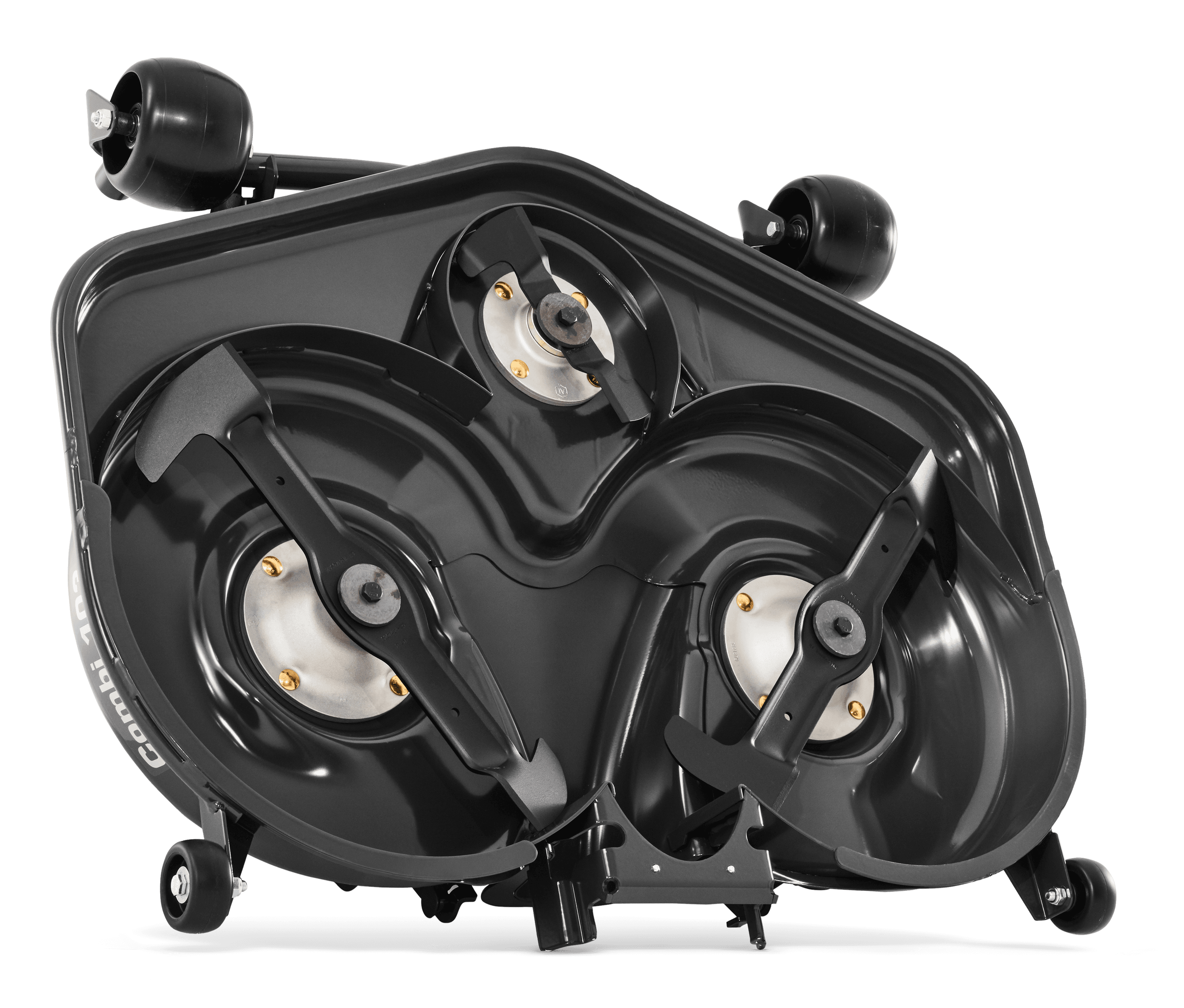

The RC 320Ts AWD Rider offers durable effectiveness, versatility and ease of use though innovative design. Its unique, non-clogging collection system feeds clippings straight from the front-mounted cutting deck to the 300 l bag. Automatic compaction increases run time between emptying, so you get more done. Articulated powered steering allows easy tight turns for superior manoeuvrability. All Wheel Drive means superior power and traction in all conditions. Cutting deck servicing and cleaning is tool-free, thanks to the unique 90° service position. Unbeaten area coverage and huge collection capacity make this a truly worthwhile investment for larger gardens. Price is complete with Combi Deck 103 (103cm).

5-year warrantyFinance options

Product Information

Features (26)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. This gives you reliable maneuverability and uniform cutting results, even when the conditions are challenging. AWD automatically adjusts the traction on all wheels depending on situation and ground condition. image

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes.

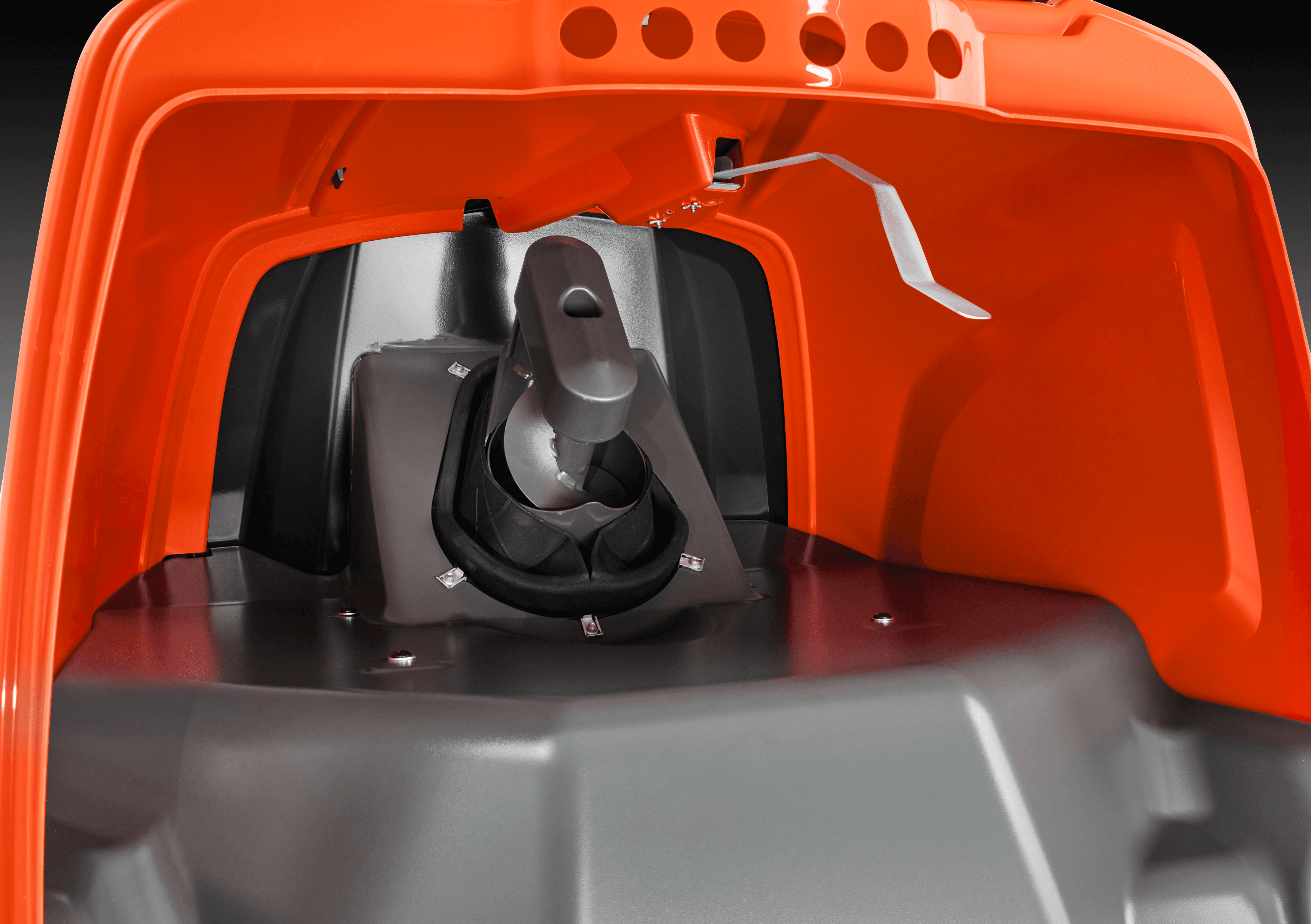

The clog-free ACTech collection system with automatic packing allows more grass in the collector for fewer emptyings and increased run time. image

ACTech

The collection system with automatic packing allows more grass in the collector for fewer emptyings.

Easy to get operating under any weather conditions. No choking needed, just turn the key and go. image

Turn key start

Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

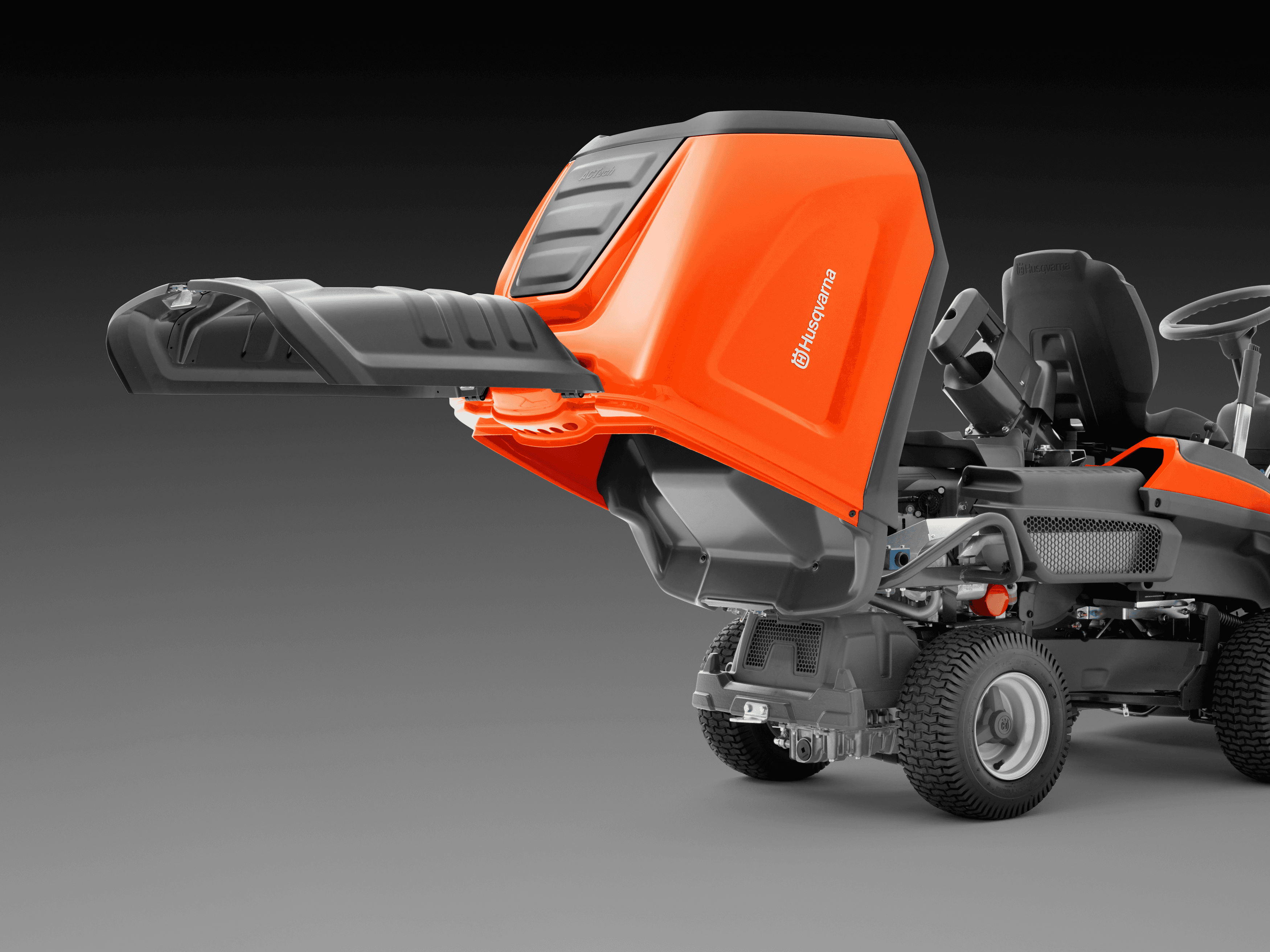

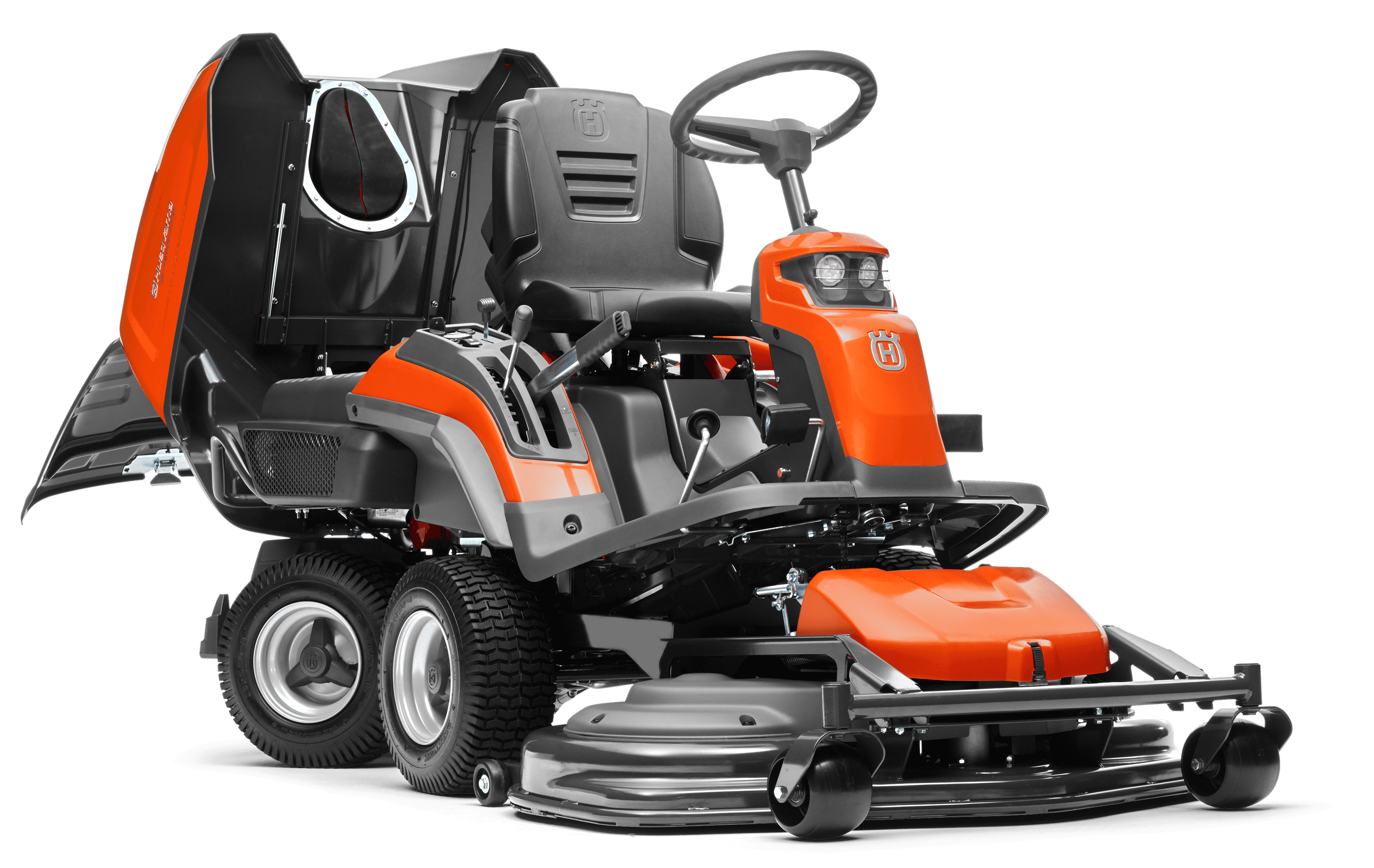

The integrated collector quickly empties from the driver's seat for continuous, uninterrupted mowing. image

Empty collector from seat

The integrated collector quickly empties from the driver's seat for continuous, uninterrupted mowing.

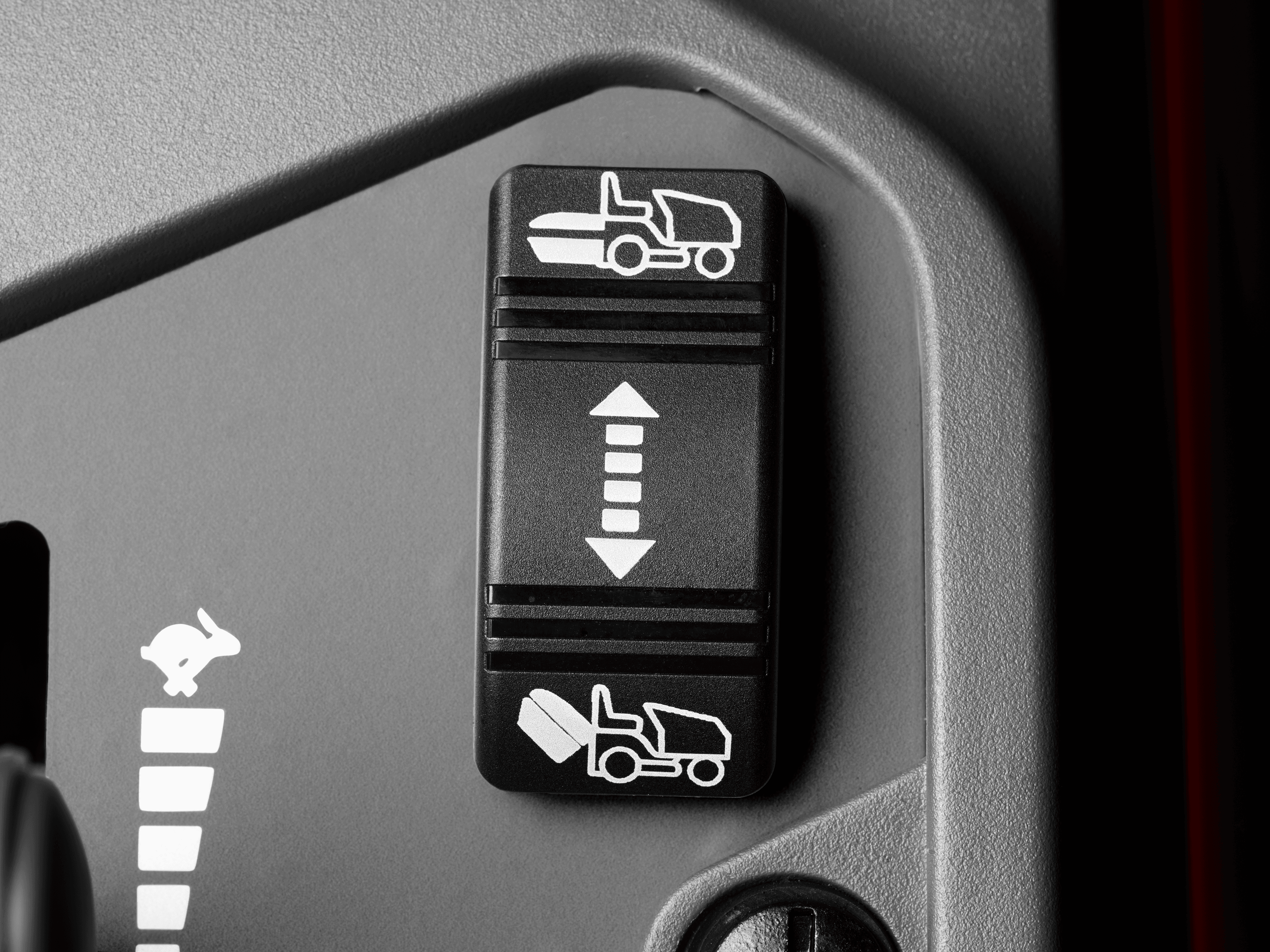

Switch between collecting and non-collecting mode with the push of a button without leaving the driver's seat. image

Non-collecting mode

Switch between collecting and non-collecting mode with the push of a button without leaving the driver's seat.

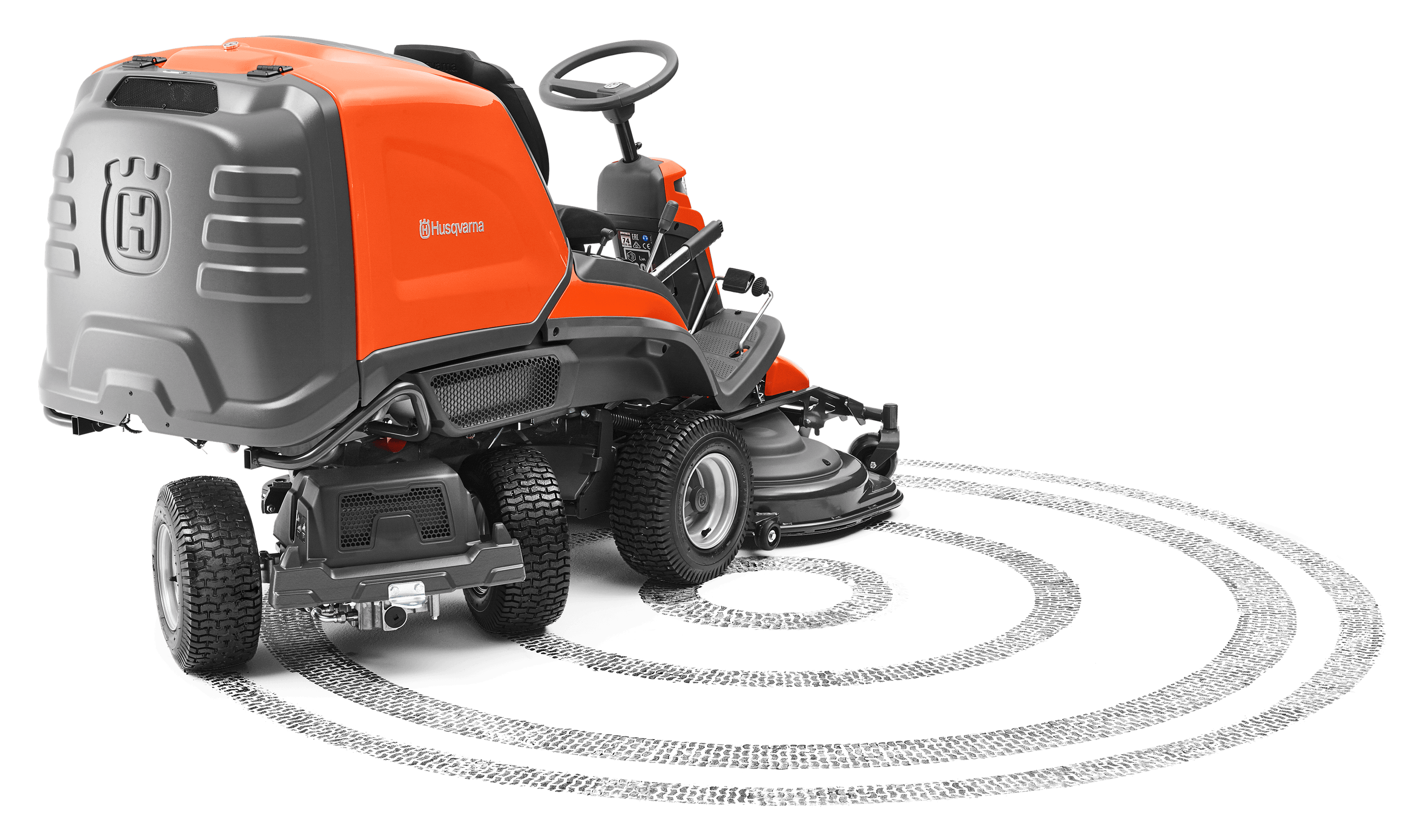

The articulated steering gives excellent manoeuvrability and facilitates driving around obstacles such as trees and bushes. image

Articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles.

Power steering makes driving less strenuous and more comfortable, as less force is required to operate the steering wheel. image

Power steering

Power steering makes driving less strenuous and more comfortable.

Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control. image

Pedal-operated hydrostatic transmission

Speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

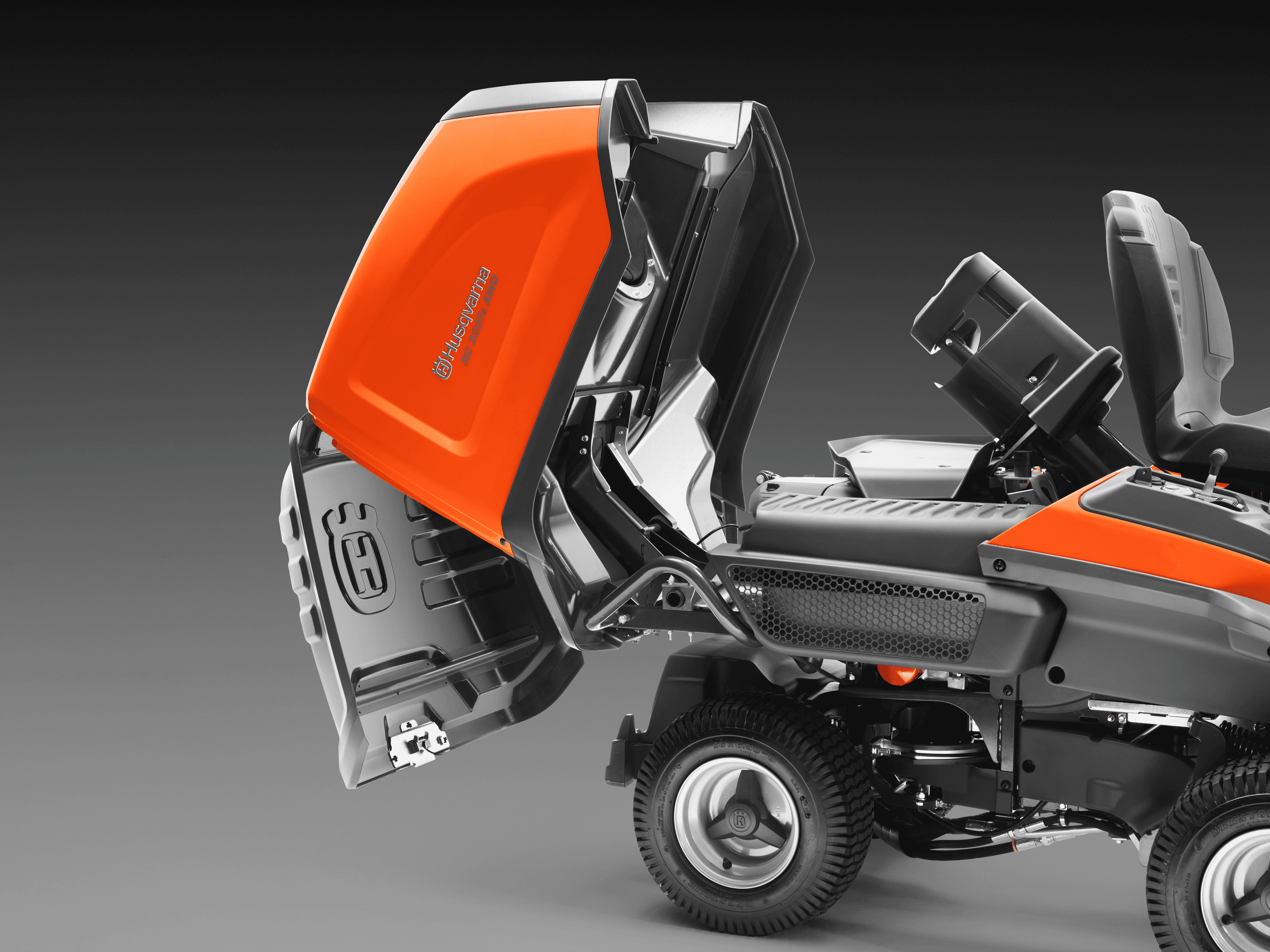

The hood can be tilted up into service position for easy access during service and maintenance. image

Easy-access service points

The hood can be tilted up into service position for easy access during service and maintenance.

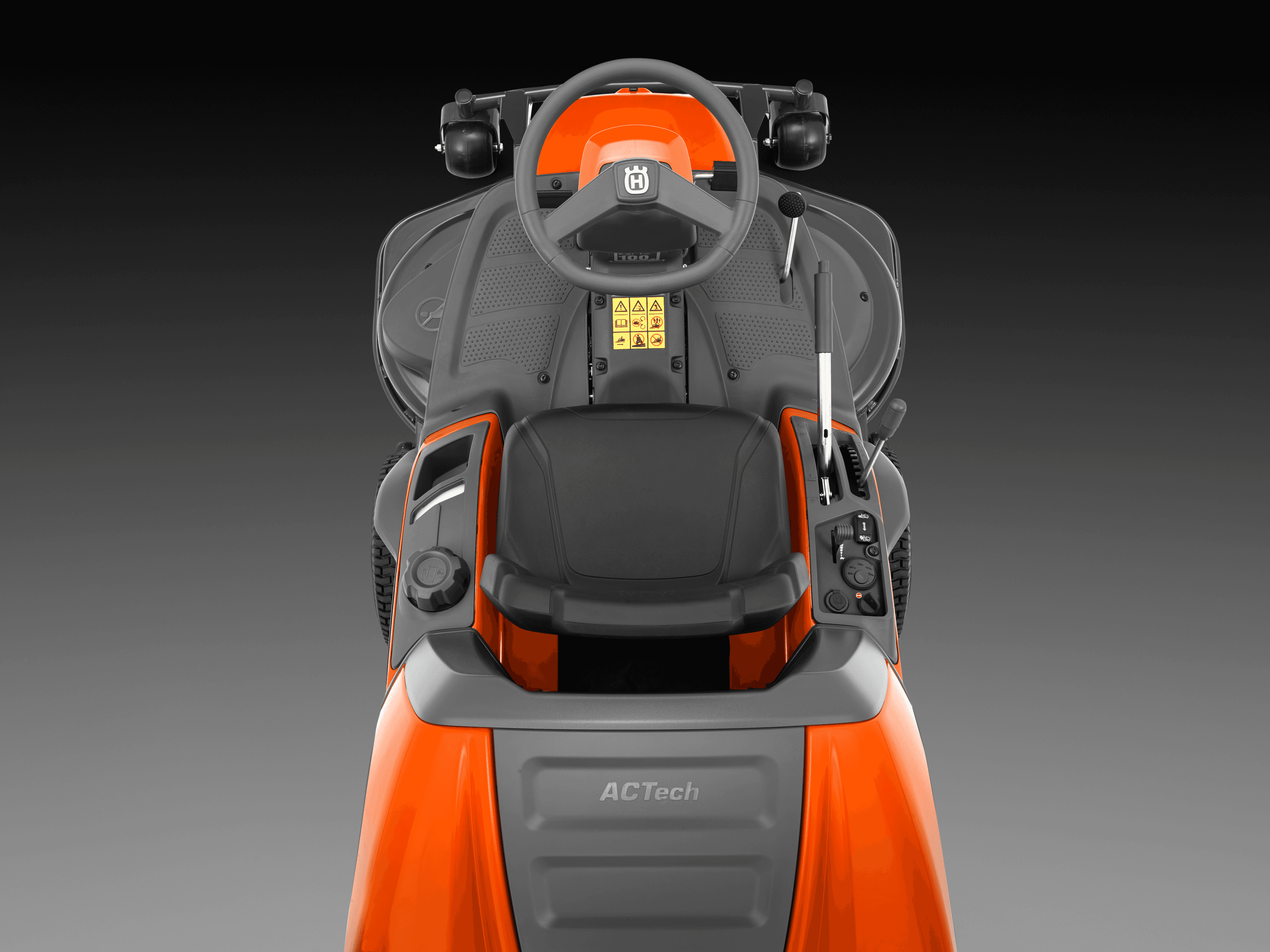

Controls are easy accessible for effective and ergonomic handling. image

Easy-access controls

Controls are easy accessible for effective and ergonomic handling.

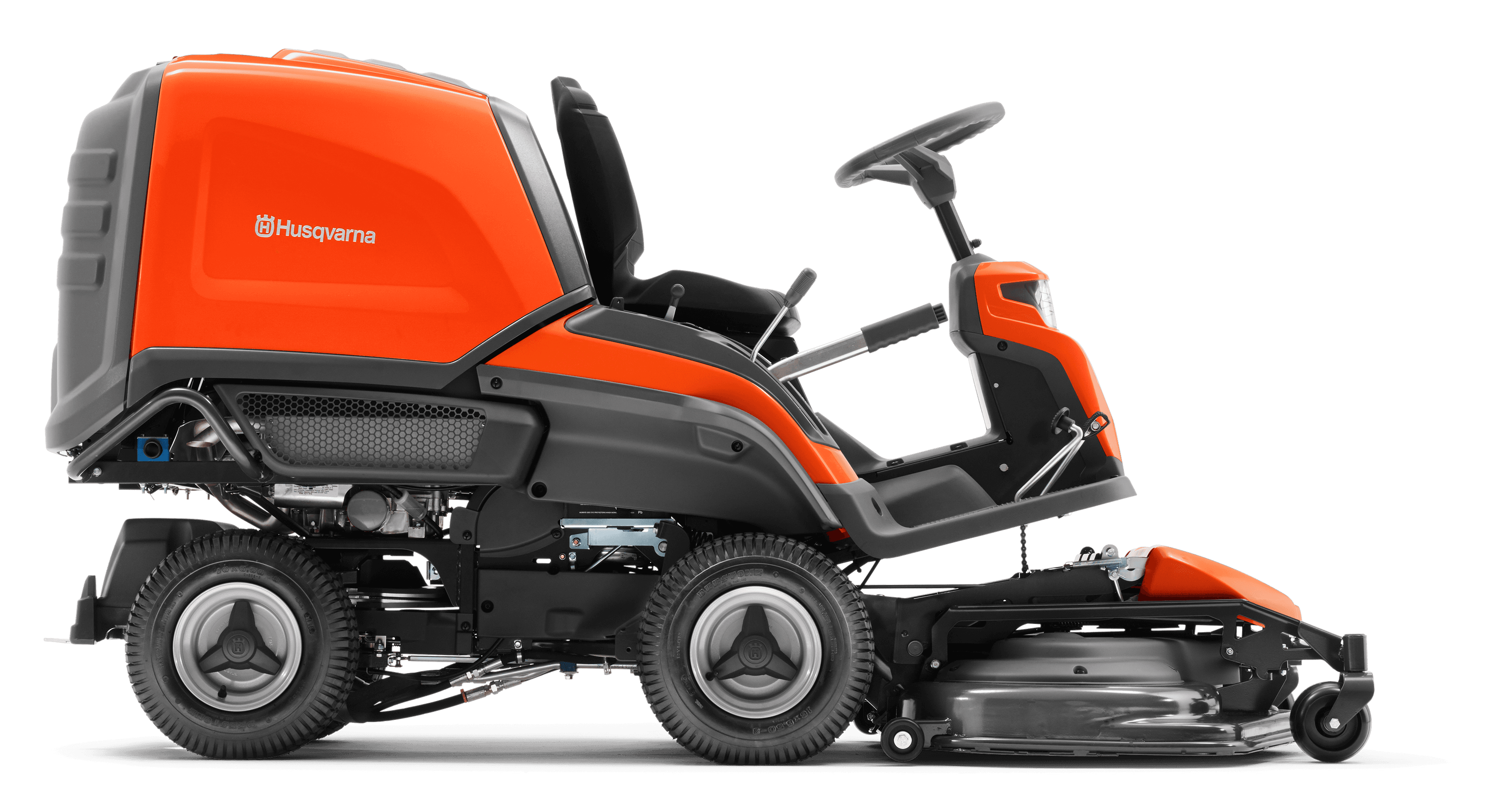

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc. image

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

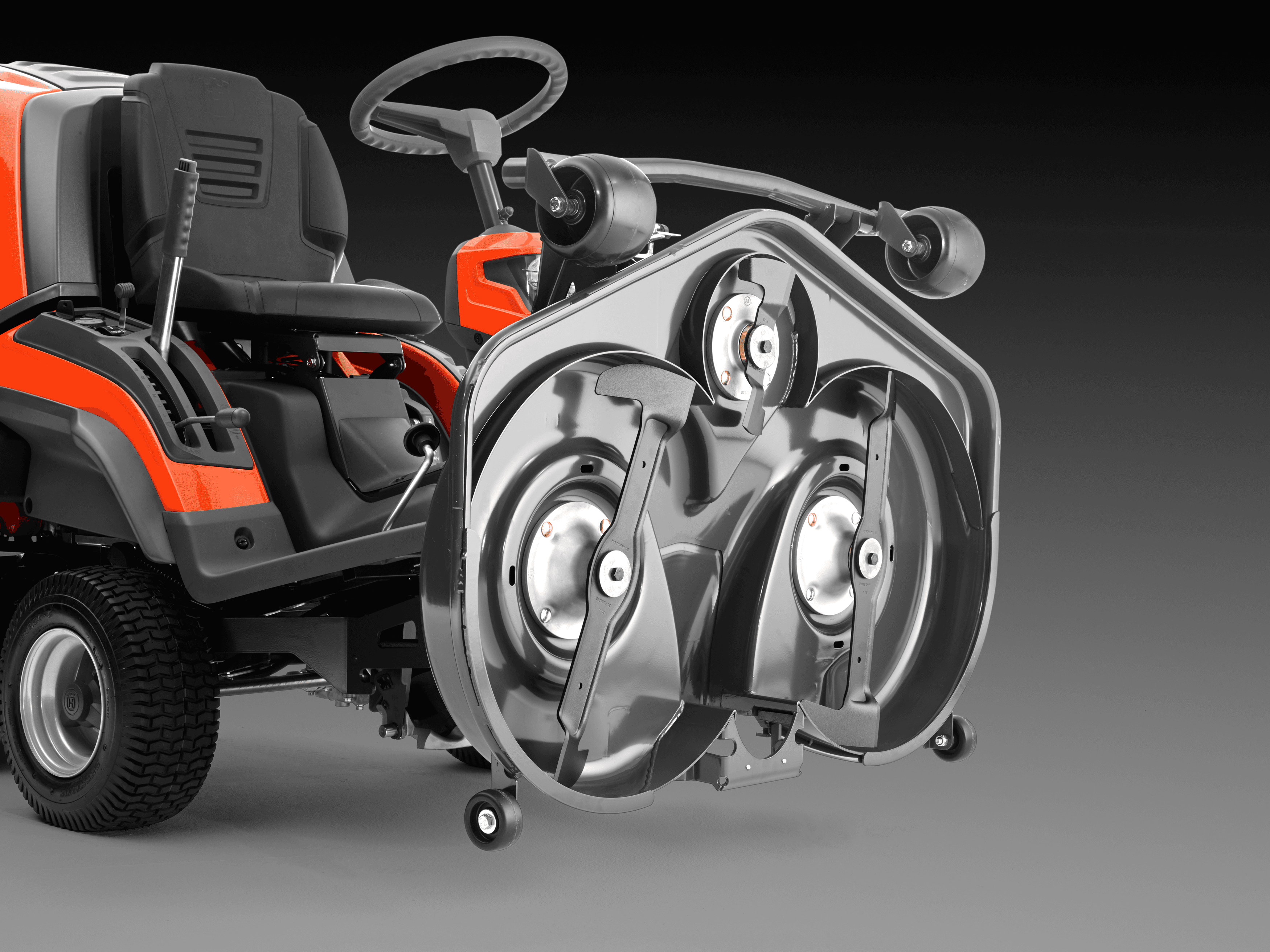

The cutting deck can be tilted up into service position for easy access during cleaning or service. image

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. image

Four large wheels

Equally sized wheels for a comfortable ride

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work. image

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. image

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels also on uneven surfaces.

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides.

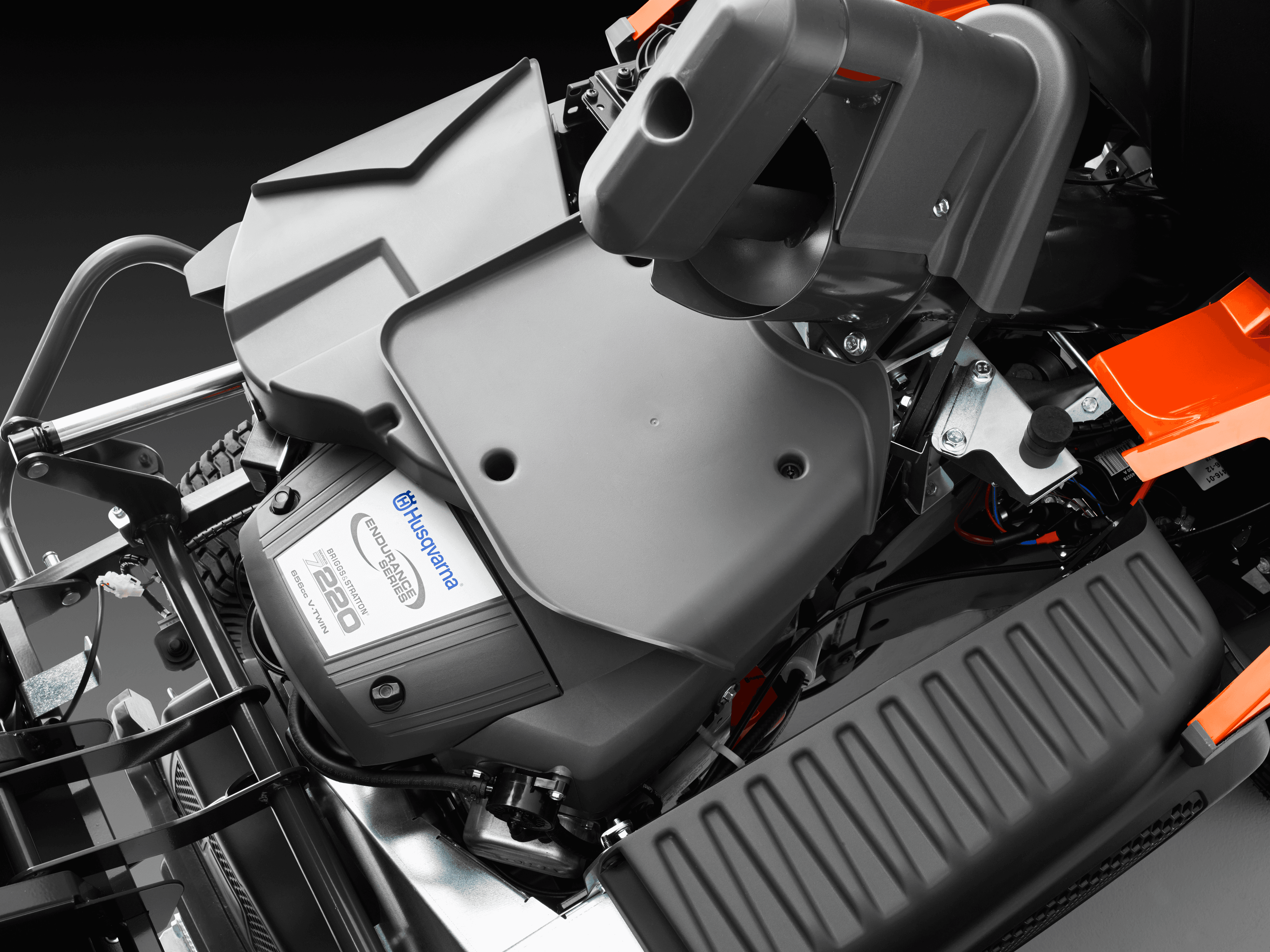

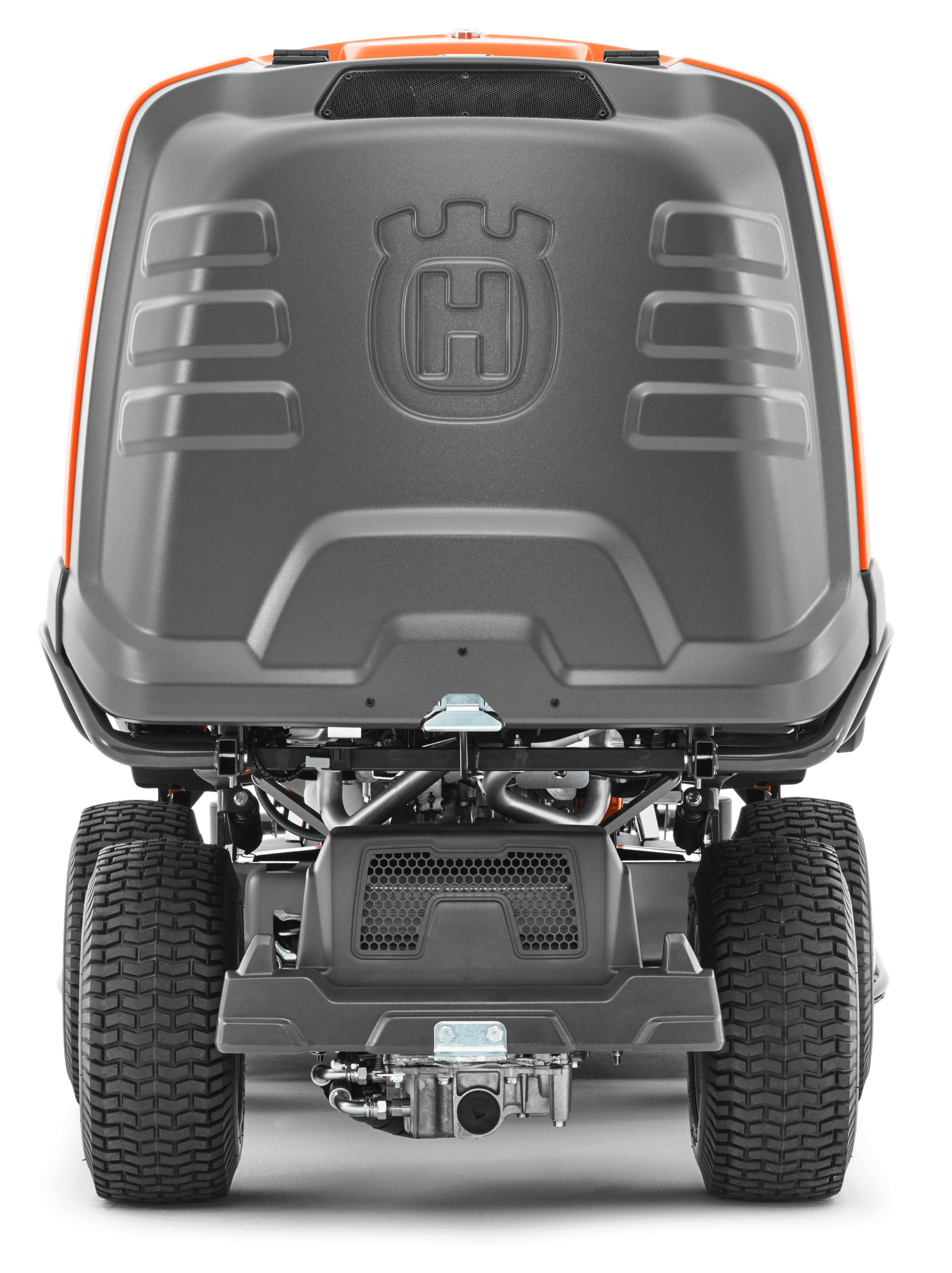

The rear-mounted engine provides a better overview of the mowing, and less noise and emissions in the driver’s area, compared to riders with front-mounted engines. image

Engine behind driver

The rear-mounted engine provides a better overview of the mowing, and less emissions in the driver’s area.

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn. image

Floating cutting deck

The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.

Hour meter with service minder indicates when it's time to service your lawn mower, making it easy to keep it in the best condition. image

Hour meter with service minder

Indicates when it's time to service your lawn mower, making it easy to keep it in the best condition.

Gives over 50% larger lighted area compared to traditional incandescent lights. For safer operation in darker conditions. image

LED headlights

Gives over 50% larger lighted area compared to traditional incandescent lights.

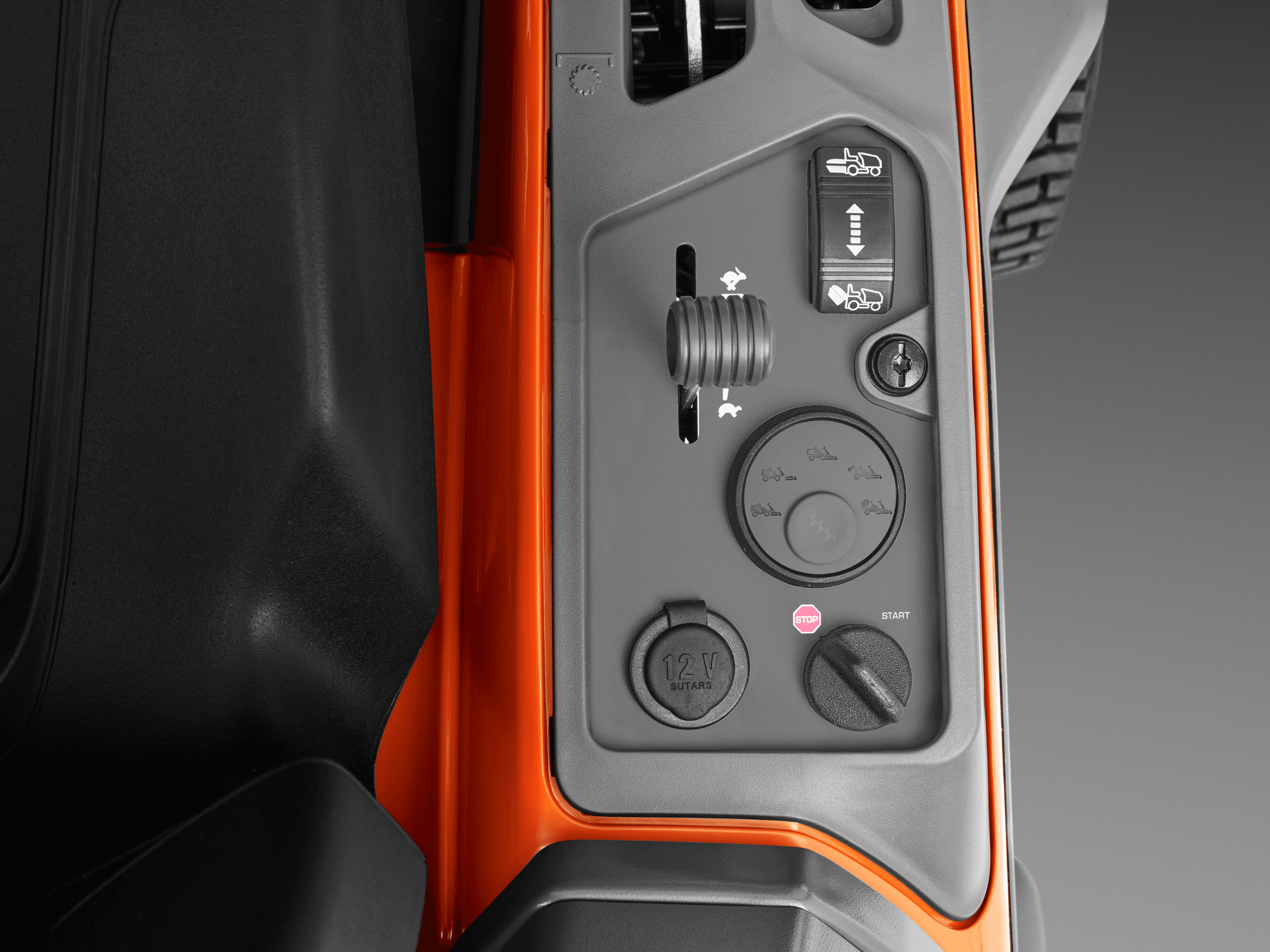

12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc. image

12V socket outlet

12V socket outlet makes it possible to plug in extra electric equipment, charge your cellular phone etc.

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. image

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Thanks to the external fuel cap, you don't have to open the engine hood when refueling. The extra wide fuel tank opening makes refueling even easier. image

External fuel cap

Thanks to the external fuel cap, you don't have to open the engine hood when refueling.

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface. image

Pivoting support wheels

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns.

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly. image

Transparent fuel tank

Large, transparent fuel tank makes it easy to check the fuel level and plan your work accordingly.

Easy to shift between cutting decks and front-mounted attachments, such as broom & flail mower. image

Attachment frame

The attachment frame makes it easy to shift between cutting decks and front-mounted attachments.

Specifications

Art No: 967628811
Output shaft power12.6 kW
Weight (excl. cutting equipment)328 kg
Cylinder displacement656.0 cm³
Weight (complete product w/o side packed articles)328 kg
Fuel tank volume12 l
Sound pressure level at operators ear85.0 dB(A)
Collector volume300 l
Base machine, height128.4 cm
Base machine, length208.9 cm
Base machine, width103 cm
Battery capacity5.5 Ah
Battery pack weight1.1 kg
Battery voltage12.8 V
Cutting height max75 mm
Cutting height min25 mm
Cutting width, max112 cm
Cutting width, min103 cm
Fuel consumption360 g/kWh
Fuel tank volume3.17 gal (US)
Ground clearance90 mm
Net power at preset rpm3100 rpm
Net power at preset rpm Energy12.6 kW
Oil capacity1.9 l
Sound power level, guaranteed (LWA)100.0 dB(A)
Sound power level, measured99.0 dB(A)
Speed forward max8 km/h
Speed reverse max7 km/h
Uncut circle60 cm
Vibration level seat0.7 m/s²
Vibration level steering wheel2.6 m/s²
Wheelbase90.3 cm
